Product Information |
Product Name |

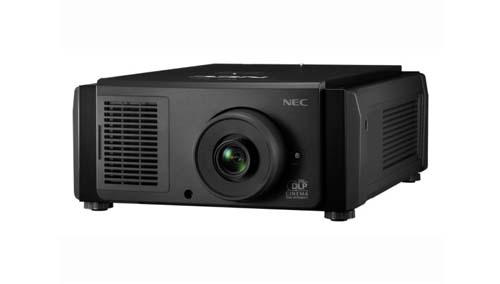

NEC NC1202L |
Product Group |
Laser Projector |
Optical |
Projection Method |
3-chip DLP Cinema® Technology |
Screen Size [m] |
up to 12 in DCI colour (1.8 Gain screen) |
Contrast Ratio |
1600:1 |
Light Source |
Laser Light Source, expected life: up to 50000 h 1 |
Lens |
Zoom / Focus / Shift: Motorized
Other: Range of shift is dependent on lens
Primary Lenses: NP-9LS12ZM1: 1.2-1.72:1; NP-9LS13ZM1: 1.33-2.1:1; NP-9LS16ZM1:
1.62-2.7:1; NP-9LS20ZM1: 2.09-3.9:1; NP-9LS40ZM1: 4.07-6.34:1 |
DMD Specifications |
2048 x 1080
Chip: 0.69″ S2K, DLP Cinema® Technology |
Cooling Method |
Liquid: Air and liquid cooling inside |
Connectivity Projector |
External Controls |
1 x GPIO (3D) (D-sub 15 pin female); 1 x GPIO (D-sub 37 pin female); 1 x RJ45 100Base-T |
Environmental Conditions |
Operating Temperature [°C] |
10 to 35 |
Operating Humidity [%] |
10 to 85 – non-condensing |
Storage Temperature [°C] |
-10 to 50 |
Storage Humidity [%] |
10 to 85 – non-condensing |
Electrical |
Power Supply |
Built-in power supply
Projector Power Supply Unit: 200 to 240V AC, 50/60Hz, single phase |
Rated Input Current |
Projector power: 9.5A @ 200V-240V |
Power Consumption [W] |
1050 max. |
Heat Dissipation (BTU) |
3583 |
Mechanical |
External Dimensions (W x H x D) [mm] |
700 x 288 x 812 (without lens and protrusions) |
Weight [kg] |
69 (without lens) |
Fan Noise [dB (A)] |
< 46 |
Additional Features |
Special Characteristics |
Built-in IMS (IMS3000, optional); Compact model; Dust sealed optical engine; Full HFR 3D
support; Laser Light System; Latest digital technology; Low TCO; Metal filter |
Green Features |
Ecological Materials |
Laser technology reduces power usage and reduces replacement materials required |
Interfaces: Dolby IMS3000 (optional) |
External Controls |
2 x RJ45 (4 GPI and 6 GPO); 2 x RJ45 Gigabit Ethernet |
Input Terminals |
1 x USB Type 2.0; 2 x 3GSDI bidirectional (input and output); 2 x USB Type 3.0; eSATA; HDMI |
Output Terminals |
2 x RJ45 (16-channel AES3-EBU Digital Audio) |
Additional Features |
HFR 3D Support (48 Hz/eye, 60 Hz/eye); Integrated SMS; Integrated Storage: 2 TB (DCP,
RAID5); NAS support |
Manufacturer |
Dolby (The Dolby IMS3000 is not a NEC product. NEC shall not in any way be liable for any
product specifications). |
