Product Information |
Product Name |

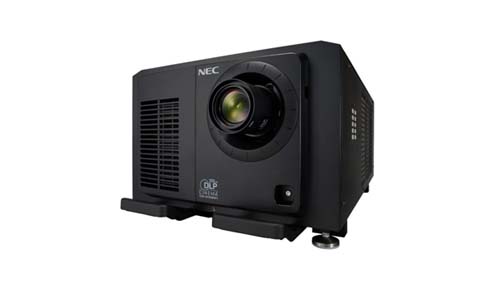

NEC NC2443ML |
Product Group |
Laser Projector |
Components |
Projector Head NP-42HD (60005139),
Laser Light Source NP-24LU03 (100015660) |
Optical |
Projection Method |
3-chip 0.98“ DC4K DMD |
Screen Size [m] |
up to 22 in DCI colour (1.8 Gain screen) |
Brightness |
Up to 24000 Lumen |
Contrast Ratio |
2000:1 |
Light Source |
Laser Light Source, expected life: up to 50000 h 1 |
Lens |
Zoom / Focus / Shift: Motorized
Other: Range of shift is dependent on lens
Primary Lenses: NC-60LS12Z:1.2-1.81:1; NC-60LS14Z:1.4-2.05:1; NC-60LS16Z:1.59-2.53:1;
NC-60LS19Z:1.9-3.25:1; NC-60LS24Z:2.4-3.9:1; NC-60LS39Z:3.9-6.52:1 |
DMD Specifications |
4096 x 2160 |
Cooling Method |
Circulating air cooling system
Liquid: Cooling inside, no chiller required |
Connectivity Projector |
External Controls |
1 x D-Sub 9 pin (RS-232); 1 x GPIO (3D) (D-sub 15 pin female); 1 x GPIO (D-sub 37 pin
female); 1 x RJ45 100Base-T; 1 x USB port (TypeA) |
Environmental Conditions |
Operating Temperature [°C] |
10 to 35 |
Operating Humidity [%] |
10 to 85 – non-condensing |
Storage Temperature [°C] |
-10 to 50 |
Storage Humidity [%] |
10 to 85 – non-condensing |
Electrical |
Power Supply |
Built-in power supply
Projector Power Supply Unit: 200 to 240V AC, 50/60Hz, single phase |
Rated Input Current |
Projector power: 19.1A @ 200V-240V |
Power Consumption [W] |
3182 max.
Projector Power: 362
Laser Module Power: 2820 typ. |
Heat Dissipation (BTU) |
10857 |
Mechanical |
External Dimensions (W x H x D) [mm] |
697 x 509.5 x 1,095 |
Weight [kg] |
153 (without lens) |
Fan Noise [dB (A)] |
< 50 |
Additional Features |
Special Characteristics |
Built-in IMS (IMS3000, optional); Compact model; Dust sealed optical engine; Laser Light
System; Latest digital technology; Low TCO; Metal filter; RB laser light source; Reduced costs |
Green Features |
Ecological Materials |
Laser technology reduces power usage and reduces replacement materials required |
Interfaces: Dolby IMS3000 (optional) |
External Controls |
2 x RJ45 (4 GPI and 6 GPO); 3 x RJ45 Gigabit Ethernet |
Input Terminals |
1 x USB Type 2.0; 2 x 3GSDI bidirectional (input and output); 2 x USB Type 3.0; eSATA; HDMI |
Output Terminals |
2 x RJ45 (16-channel AES3-EBU Digital Audio) |
Additional Features |
HFR 3D Support (48 Hz/eye, 60 Hz/eye); Integrated SMS; Integrated Storage: 2 TB (DCP,
RAID5); NAS support |
