| Product Information |
| Product Group |

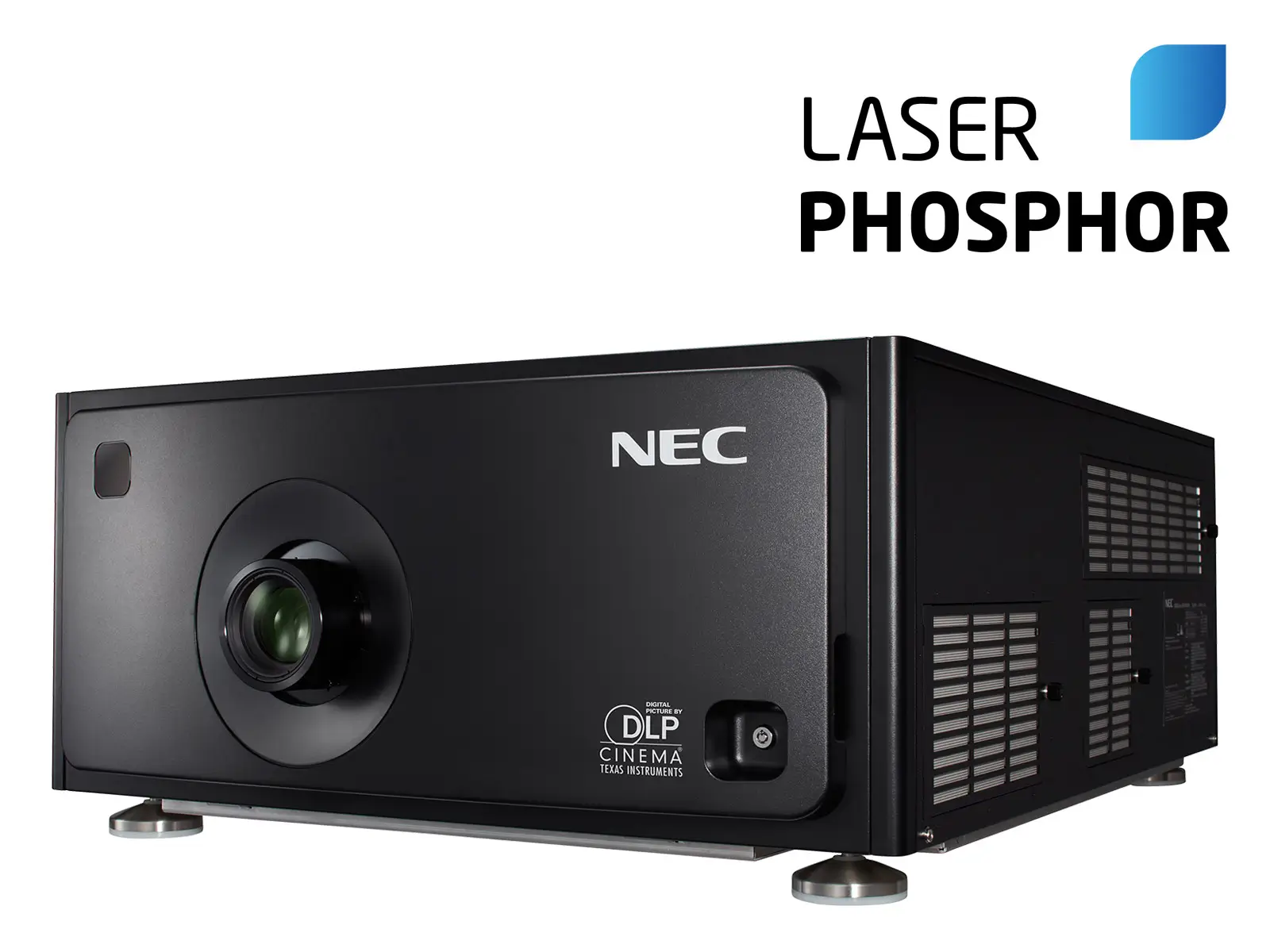

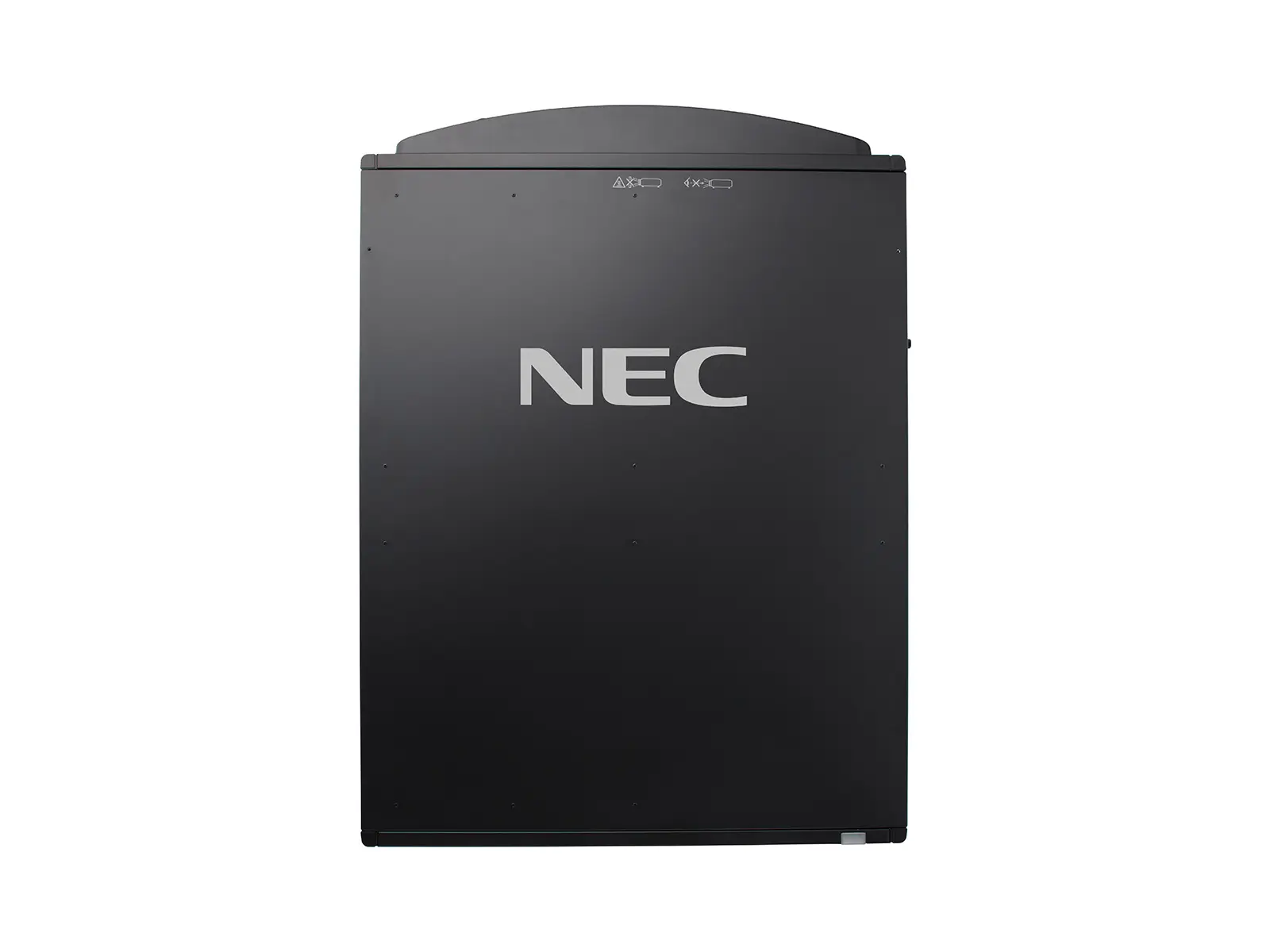

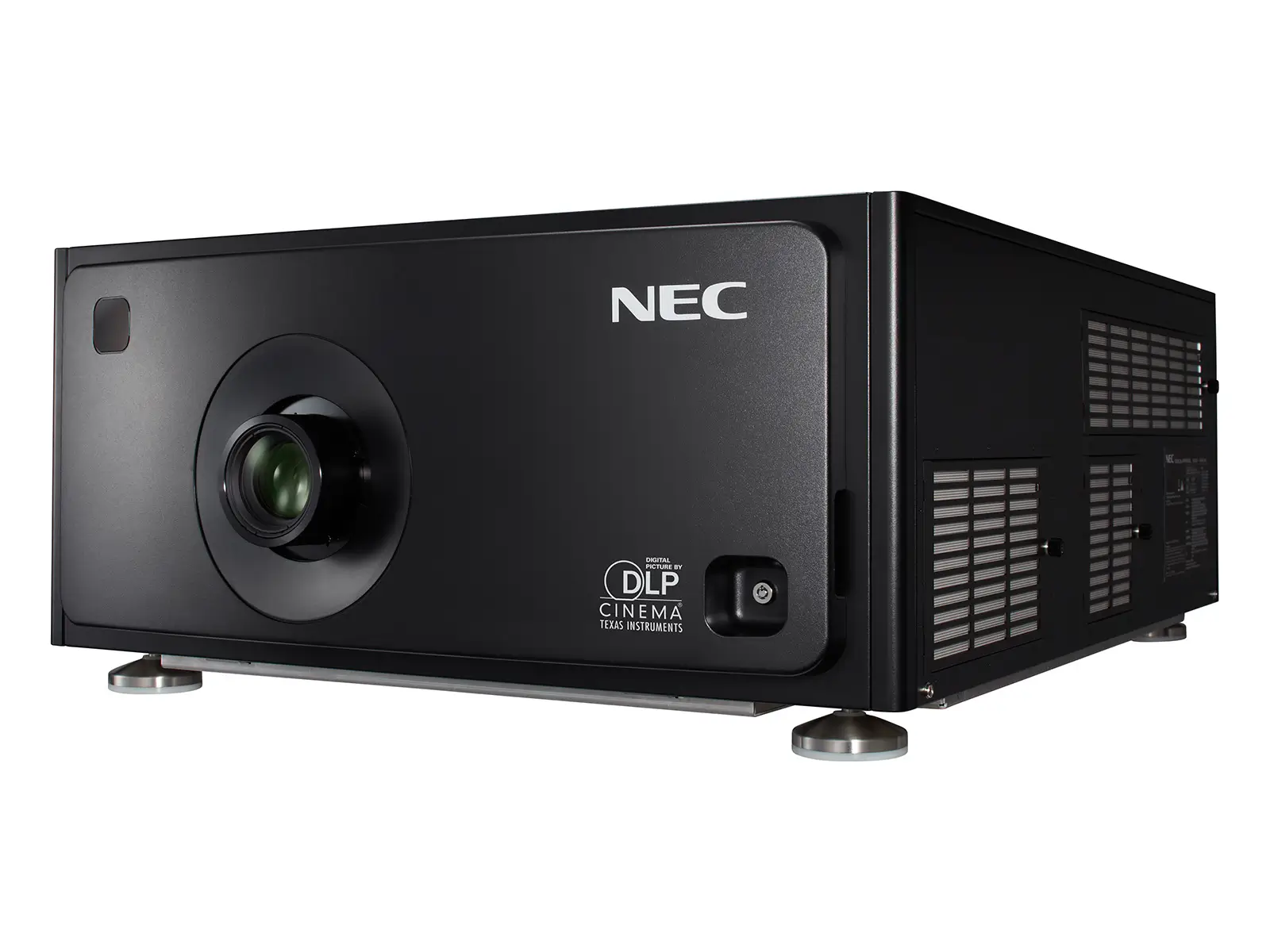

Cinema Laser Projector |
| Optical |
| Projection Method |
3-chip DLP Cinema® Technology |
| Screen Size [m] |
up to 11 in DCI colour (1.8 Gain screen) |
| Brightness |
6000 Lumen |
| Light Source |
Laser Light Source, expected life: up to 50000 h 1 |
| Lens |
Zoom / Focus / Shift: Motorized
Other: Range of shift is dependent on lens
Primary Lenses: NP-9LS12ZM1: 1.2-1.72:1; NP-9LS13ZM1: 1.33-2.1:1;
NP-9LS16ZM1: 1.62-2.7:1; NP-9LS20ZM1: 2.09-3.9:1 |
| DMD Specifications |
2048 x 1080
Chip: 0.69″ S2K, DLP Cinema® Technology |
| Cooling Method |
Circulating air cooling system |
| Connectivity Projector |
| External Controls |
1 x GPIO (3D) (D-sub 15 pin female); 1 x GPIO (D-sub 37 pin female); 1 x
RJ45 100Base-T |
| Environmental Conditions |
| Operating Temperature[°C] |
10 to 35 |
| Operating Humidity [%] |
10 to 85 – non-condensing |
| Storage Temperature[°C] |
-10 to 50 |
| Storage Humidity [%] |
10 to 85 – non-condensing |
| Electrical |
| Power Supply |
Built-in power supply
Projector Power Supply Unit: 200 to 240V AC, 50/60Hz, single phase |
| Rated Input Current |
Projector power: 7.4A @ 200V-240V |
| Power Consumption[W] |
890 typ. |
| Heat Dissipation (BTU) |
3248 max. |
| Mechanical |
External Dimensions
(W x H x D) [mm] |
680 x 333 x 860 (without lens and protrusions) |
| Weight [kg] |
59 (without lens) |
| Fan Noise [dB (A)] |
< 39 |
| Additional Features |
| Special Characteristics |
Built-in IMS (IMS3000, optional); Compact model; DCI compliant; Dust
sealed optical engine; Full HFR 3D support; Laser Light System; Latest
digital technology; Low TCO; Metal filter |
| Green Features |
| Ecological Materials |
Laser technology reduces power usage and reduces replacement
materials required |
| Interfaces: Dolby IMS3000 (optional) |
| External Controls |
2 x RJ45 (4 GPI and 6 GPO); 2 x RJ45 Gigabit Ethernet |
| Input Terminals |
1 x USB Type 2.0; 2 x 3GSDI bidirectional (input and output); 2 x USB Type
3.0; eSATA; HDMI |
| Output Terminals |
2 x RJ45 (16-channel AES3-EBU Digital Audio) |
| Additional Features |
HFR 3D Support (48 Hz/eye, 60 Hz/eye); Integrated SMS; Integrated
Storage: 2 TB (DCP, RAID5); NAS support |
| Manufacturer |
Dolby (The Dolby IMS3000 is not a NEC product. NEC shall not in any way
be liable for any product specifications). |
