| Product Information |
| Product Name |

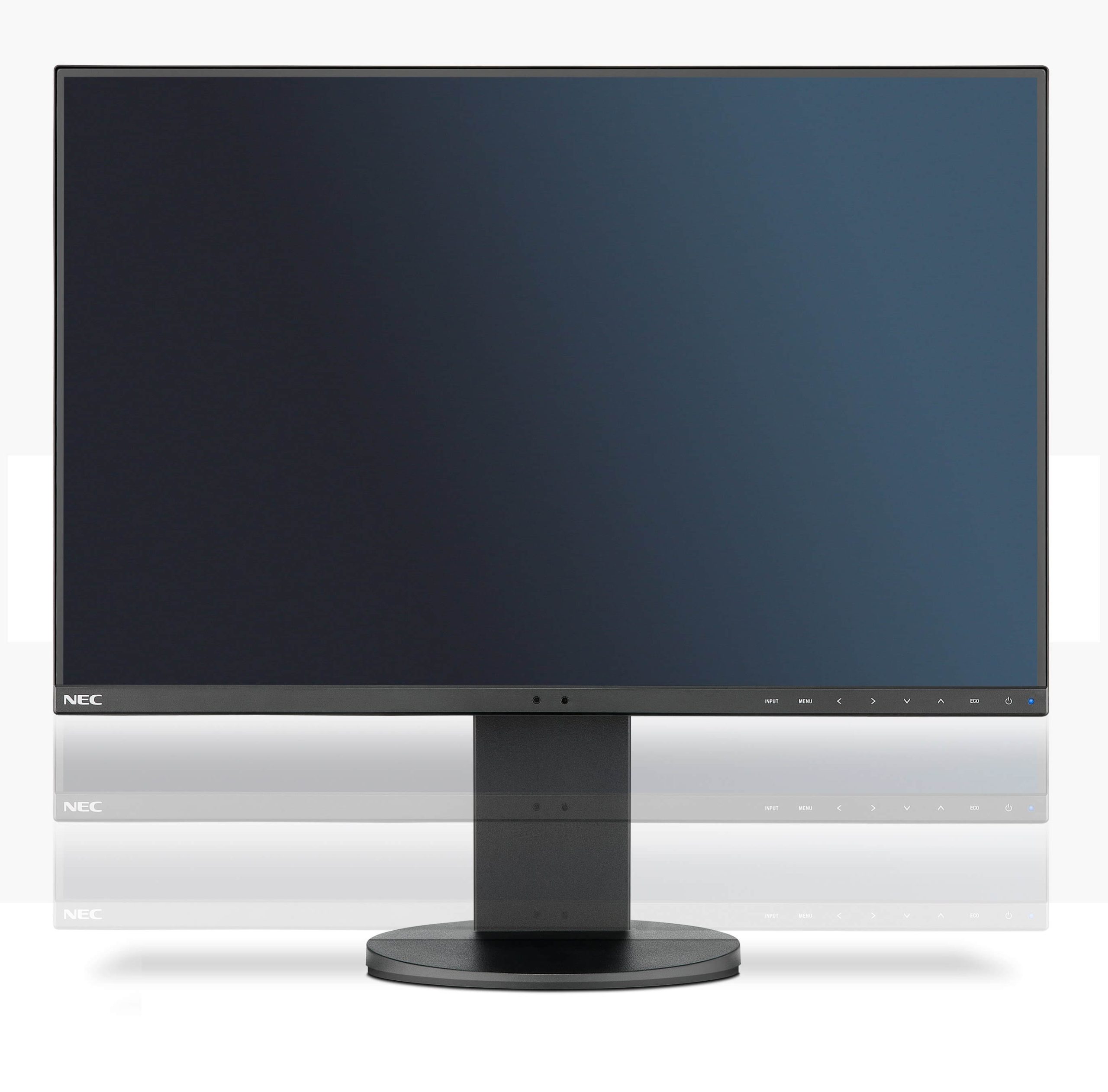

NEC MultiSync® EA241F |
| Product Group |
LCD 23.8″ Enterprise Display |
| Display |
| Panel Technology |
IPS TFT with W-LED backlight |
| Screen Size [inch/cm] |
24 / 60.47 |
| Screen Aspect Ratio |
16:9 |
| Colour Gamuts |
101.6% sRGB; 75.3% AdobeRGB, 72% NTSC |
| Pixel Pitch [mm] |
0.275 |
| Brightness (typ.) [cd/m²] |
250 |
| Contrast Ratio (typ.) |
1000:1 (5000:1 dynamic contrast ratio) |
| Viewing Angle [°] |
178 horizontal / 178 vertical (typ. at contrast ratio 10:1) |
| Response Time (typ.) [ms] |
5 (grey-to-grey) |
| Colours [Mio.] |
16.78 (6-bit per colour) |
| Synchronisation Rate |
| Horizontal Frequency [kHz] |
31.5 – 83 |
| Vertical Frequency [Hz] |
50 – 75 |
| Resolution |
| Optimum Resolution |
1920 x 1080 at 60 Hz |
| Supported Resolutions |
1024 x 768; 1280 x 960; 1920 x 1080; 720 x 480;
1280 x 1024; 1440 x 900; 640 x 480; 720 x 576;
1280 x 720; 1680 x 1050; 720 x 400; 800 x 600; |
| Connectivity |
| Digital |
1 x DisplayPort; 1 x DVI-D (with HDCP); 1 x HDMI; USB ver. 3.1 (3 down / 1 up) |
| Analog |
1 x D-sub 15 pin |
| Electrical |
| Power Consumption on Mode [W] |
11 (Eco Mode 2); 15 (shipping); 47 (max.) |
| Power Savings Mode [W] |
0.31 |
| Power Supply |
0.9 A/0.5 A; 100-240 V; internal power supply |
| Environmental Conditions |
| Operating Temperature [°C] |
+5 to +35 |
| Operating Humidity [%] |
20 to 80 |
| Storage Humidity [%] |
10 to 85 |
| Storage Temperature [°C] |
-10 to 60 |
| Ergonomics |
| Height Adjustable Stand [mm] |
150 (Landscape mode) |
| Screen Tilt [°] |
-5 to 35 |
| Screen Swivel [°] |
-170 to 170 |
| Screen Rotate [°] |
0 to 90 (landscape to portrait mode) |
| Mechanical |
| Bezel Width [mm] |
0.8 (left/right/top); 15.8 (bottom) |
| Dimensions (W x H x D) [mm] |
319.1 x 555.6 – 615.4 x 250 (Portrait mode); 537.7 x 336.6 – 486.6 x 250 (Landscape mode) |
| Weight [kg] |
With stand: 6.1; Without stand: 3.6 |
| VESA Mounting [mm] |
100 x 100 (4 points) |
| Additional Features |
| Colour Versions |
Black Front Bezel, Black Back Cabinet; White Front Bezel, White Back Cabinet |
| Cable Management |
yes |
| Plug and Play |
DDC2B/2Bi; VESA DDC/CI; VESA DDC2Bi |
| Audio |
Integrated Speakers (1 W + 1 W) |
| Adjust Functions |
Advanced NTAA (Advanced Non-Touch-Auto-Adjustment) |
| Shipping Content |
Control Sync Cable; DisplayPort cable; Monitor; Power Cable; Set-up Manual; USB Cable |
| Safety and Ergonomics |
CE; EAC; EnergyStar 8.0; ErP; Flicker-free; ISO 9241-307 (pixel failure class I); Low Blue Light; PSB; RoHS; TCO 8.0; TÜV Ergonomics; TÜV GS; UL/C-UL or CSA; WEEE |
| Green Features |
| Energy Efficiency |
Ambient light sensor; Energy efficiency class: A+; Human sensor |
| Ecological Standards |
Energy Star 8.0; ErP compliant; RoHS compliant; TCO 8.0; WEEE |
