| Product Information |
| Product Name |

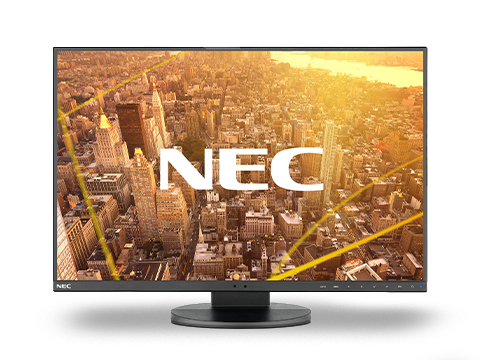

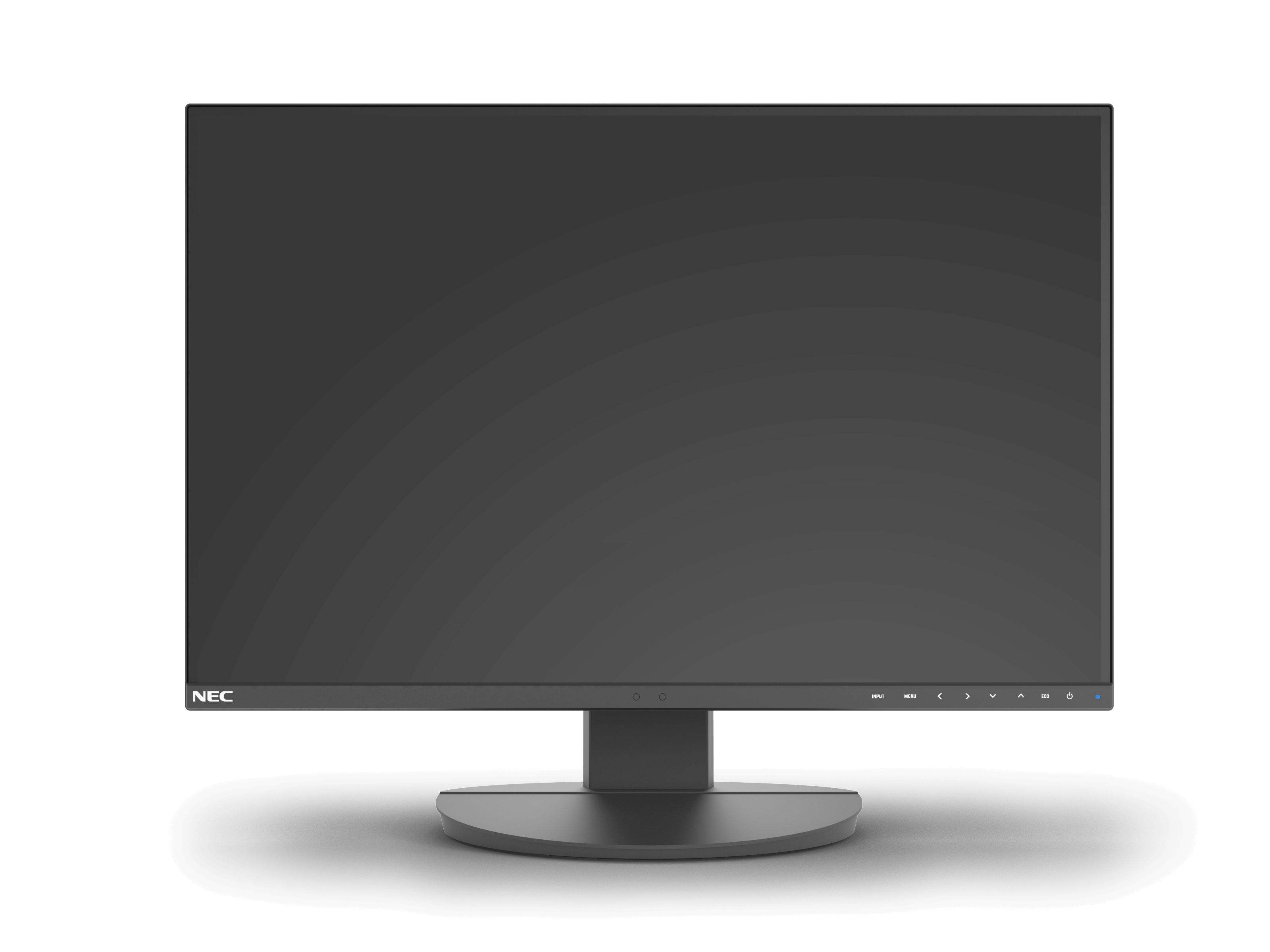

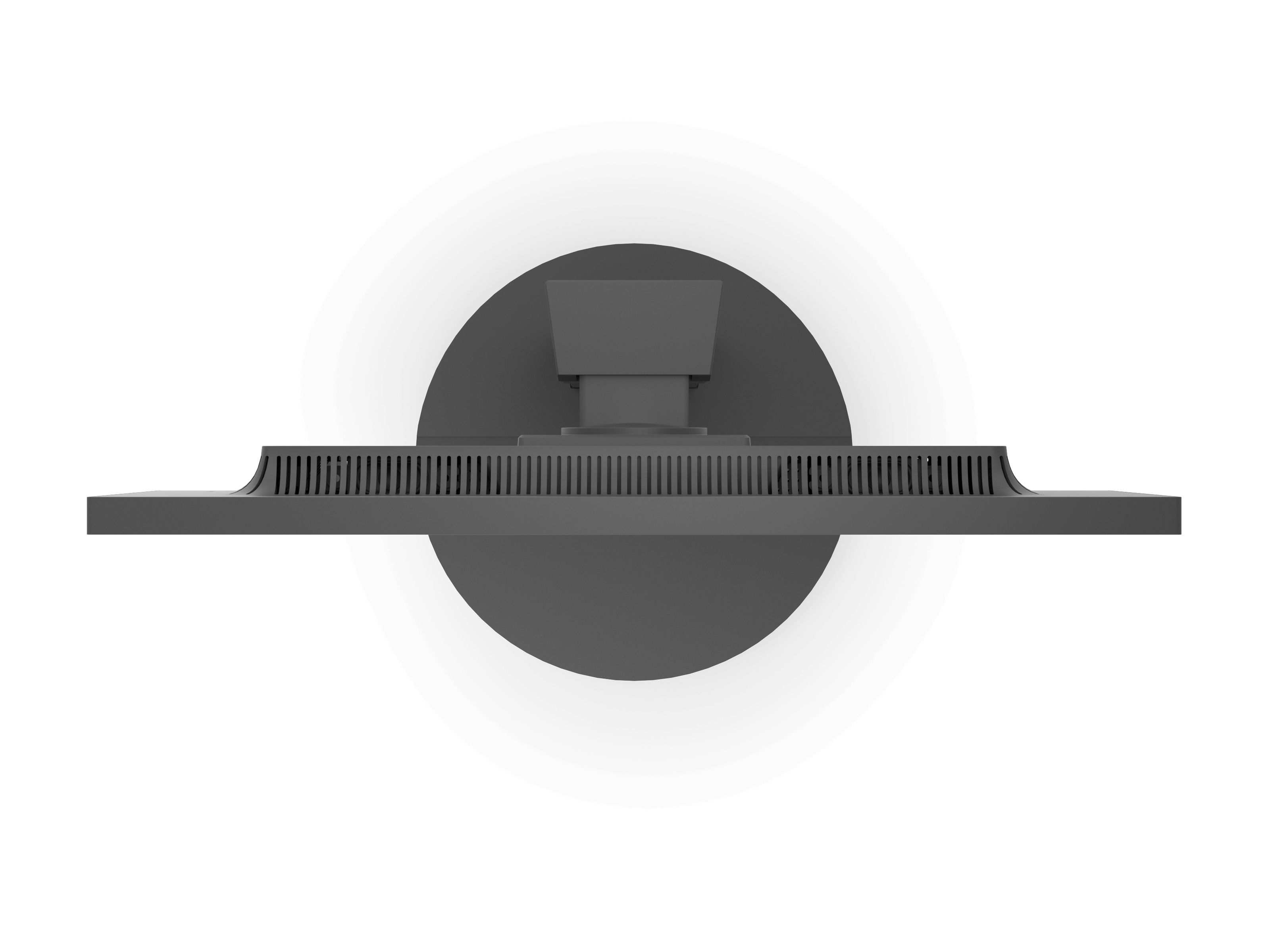

NEC MultiSync® EA241WU |
| Product Group |
LCD 24″ Enterprise Display |
| Display |
| Panel Technology |
IPS TFT with W-LED backlight |
| Screen Size (inch/cm) |
24 / 61 |
| Screen Aspect Ratio |
16:10 |
| Pixel Pitch (mm) |
0.270 |
| Brightness (typ.) [cd/m²] |
300 |
| Contrast Ratio (typ.) |
1000:1 (5000:1 dynamic contrast ratio) |
| Viewing Angle (°) |
178 horizontal / 178 vertical (typ. at contrast ratio 10:1) |
| Response Time (typ.) [ms] |
5 |
| Colours [Mio.] |
16.77 |
| Synchronization Rate |
| Horizontal Frequency [kHz] |
31.5 – 95 |
| Vertical Frequency [Hz] |
56 – 75 |
| Resolution |
| Optimum Resolution |
1920 x 1200 at 60 Hz |
| Supported |
1920 x 1200; 1680 x 1050; 1600 x 1200; 1440 x 900; 1400 x 1050;
1366 x 768; 1280 x 1024; 1280 x 960; 1024 x 768; 800 x 600; 640 x 480 |
| Connectivity |
| Digital |
1 x DisplayPort; 1 x DVI-D; 1 x HDMI; USB ver. 3.0 (3 down / 1 up) |
| Analog |
1 x D-sub 15 pin |
| Electrical |
| Power Consumption on Mode [W] |
15 (Eco Mode 2); 20 (typ.); 47 (max.) |
| Power Savings Mode [W] |
0.3 |
| Power Supply |
Internal power supply |
| Environmental Conditions |
| Operating Temperature [°C] |
+5 to +35 |
| Operating Humidity [%] |
20 to 80 |
| Ergonomics |
| Height Adjustable Stand [mm] |
150 |
| Screen Tilt / Swivel [°] |
-5 to +35; -170 to +170 |
| Screen Rotate [°] |
-90 to 90 (landscape to portrait mode) |
| Mechanical |
| Bezel Width [mm] |
0.8 (left/right/top) |
| Dimensions (W x H x D) [mm] |
With stand: 531.5 x 515.4 x 250 |
| Weight [kg] |
6.7 |
| VESA Mounting |
| VESA Mounting [mm] |
100 x 100 |
| Additional Features |
| Special Characteristics |
Ambient light sensor for optimized brightness levels; Carbon Footprint Meter; Carbon Savings Meter; ControlSync®; Customize Setting; DICOM preset; EcoModes; Human Sensor; LED Backlight Technology; NaViSet Administrator 2; Quick release stand and Handle; sRGB Support; Touch Sensor Keys; USB ver. 3.0 (3 down / 1 up) |
| Colour Versions |
Black Front Bezel, Black Back Cabinet; White Front Bezel, White Back Cabinet |
| Cable Management |
Yes |
| Kensington Security Slot |
Yes |
| Plug and Play |
VESA DDC2B; VESA DDCi |
| Audio |
Headphone Jack; Integrated Speakers (1 W + 1 W) |
| Adjust Functions |
Audio Volume / Lock-Out; Auto Adjust; Brightness; Colour Temperature Control; Contrast; Control Sync; DV Mode; EcoMode; Fine Adjust (analog); Human Sensor; Intelligent Power Management; Language Select; LED Brightness; Monitor Information; NTAA (Non-Touch-Auto-Adjustment); On-Screen-Display (OSD) lock-out; One Touch Recovery; Power-Off Timer; sRGB |
| Shipping Content |
| Contents |
Control Sync Cable; DisplayPort Cable; Monitor; Power Cable; Setup Guide; USB Cable |
| Safety and Ergonomics |
| Certifications |
CE; EAC; EnergyStar 8.0; EPEAT; Flicker-free; ISO 9241-307 (pixel failure class I); Low Blue Light; PSB; RoHS; TCO 8.0; TÜV Ergonomics; TÜV GS; UL/C-UL or CSA; WEEE |
| Green Features |
| Energy Efficiency |
Ambient light sensor; Energy consumption: 12 kWh/1000 h; Energy efficiency class: C; Human sensor; Intelligent Power Management |
| Ecological Materials |
Downloadable manuals |
| Ecological Standards |
Energy Star 8.0; TCO 8.0 |
