MODEL |
NP-PA804UL |
Projection Method |
3LCD Technology |
Specifications of main parts |
Liquid Crystal Panel |
Size |
0.76″ (with DMLA) × 3 (aspect ratio: 16:10) |
Pixels |
2,304,000 (1,920 dots × 1,200 lines) |
Projection
lenses |
Zoom |
Manual and motorised |
Focus |
Manual and motorised |
Lens Shifting |
Refer to Lens specification |
Light source |
Laser diode |
Light source (laser diode) life1 |
20,000 H |
Light Output |
Boost mode |
8,200 lumens |
Normal mode |
7,500 lumens |
ECO 1 mode |
6,000 lumens |
ECO 2 mode |
3,800 lumens |
Contrast ratio2 (all white / all black) |
3,000,000 : 1 with dynamic contrast |
Screen Size (throw distance) |
50″ to 500″ (throw distance depends on lens) |
Colour Reproducibility |
10-bit colour processing (approx. 1.07 billion colours) |
Scan rate |
Horizontal |
Analogue: 15 kHz, 24 to 100 kHz (24 kHz or greater for RGB inputs), conforms to VESA standards /
Digital: 15 kHz, 24 to 153 kHz, conforms to VESA standards |
Vertical |
Analogue: 48 Hz, 50 to 85 Hz, 100, 120 Hz conforms to VESA standards /
Digital: 24, 25, 30, 48 Hz, 50 to 85 Hz, 100, 120 Hz conforms to VESA standards |
Maximum resolution (horizontal × vertical) |
Analogue: 1,920 × 1,200 / Digital: 4,096 × 2,160 |
Keystone Correction |
Horizontal |
Manual, Approx. ± 40 degrees max |
Vertical |
Manual, Approx. ± 40 degrees max |

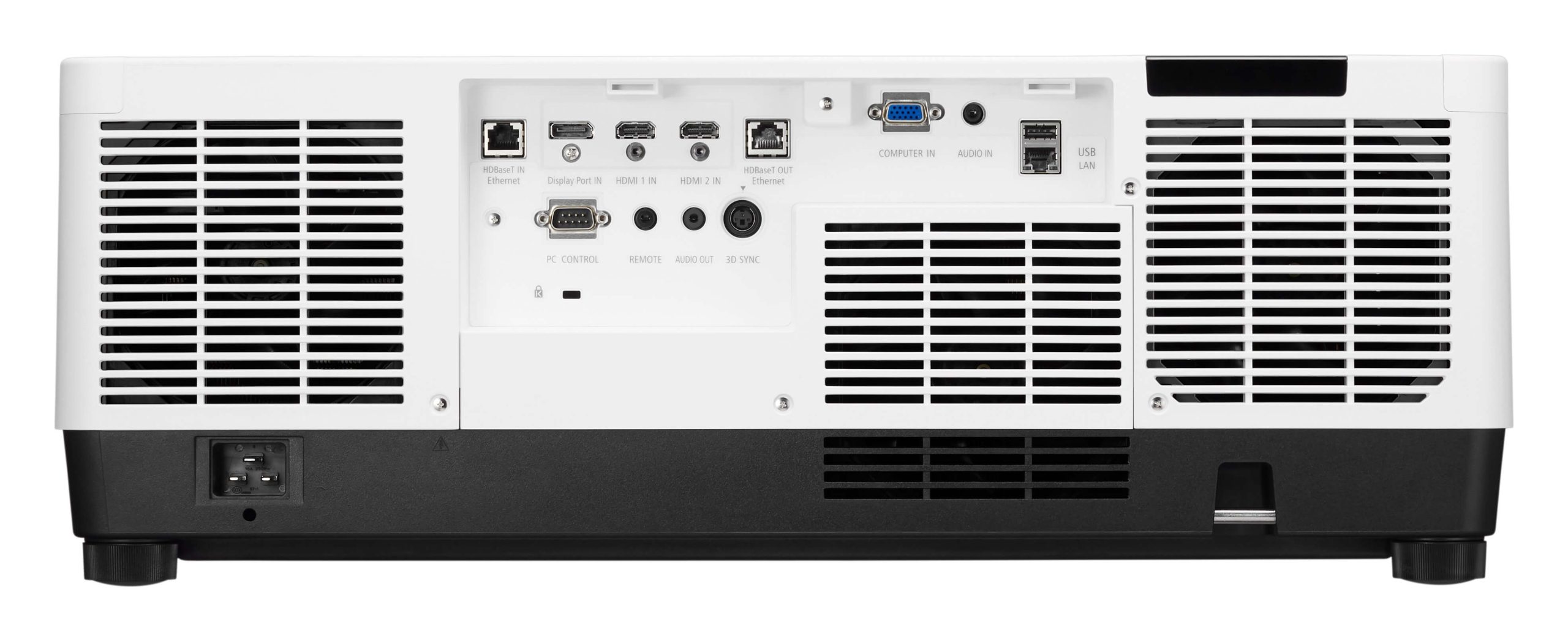

Input / output connectors |
Computer /
Component |
Video Input |
Mini D-Sub 15-pin × 1 |
Audio Input |
Stereo mini jack × 1 |
Audio Output |
Stereo mini jack × 1 (common for all signals) |
HDMI |
Video Input |
Type A HDMI connector × 2, Deep Colour (colour depth): Support 8 bits, 10 bits, 12 bits, Colourimetry Support: RGB,
YCbCr444, YCbCr422, YCbCr420, Rec.2020, Rec.709, Rec.601, Support 4K, 3D, HDCP, LipSync, HDR |
Audio Input |
Yes |
HDBaseT /
Ethernet Port |
Video Input |
RJ45 × 1, Support 100BASE-TX, Deep Colour (colour depth): Support 8 bits, 10 bits, 12 bits, Colourimetry Support: RGB,
YCbCr444, YCbCr422, YCbCr420, Rec.2020, Rec.709, Rec.601, Support 4K, 3D, HDCP, LipSync, HDR |
Audio Input |
Yes |
Video Output |
RJ45 × 1, Support 100BASE-TX, Deep Colour (colour depth): Support 8 bits, 10 bits, 12 bits, Colourimetry Support: RGB,
YCbCr444, YCbCr422, Rec.709, Rec.601, Support 4K, 3D, HDCP, LipSync |
Audio Output |
Yes |
DisplayPort |
Video Input |
DisplayPort 20 pin connecter × 1, Deep Colour (colour depth): Support 8 bits, 10 bits, 12 bits,
Colourimetry Support: RGB, YCbCr444, YCbCr422, Rec.709, Rec.601, Support 4K, 3D, HDCP |
Audio Input |
Yes |
PC control connector |
D-Sub 9-pin × 1 |
USB port |
USB type A × 1, (USB 2.0 High speed / Full speed / Low speed) for Mouse |
Ethernet / LAN / HDBaseT port |
RJ-45 × 1, Supports 10BASE-T / 100BASE-TX, HDBaseT |
Remote connector |
Stereo mini jack × 1 |
3D SYNC output terminal |
5 V / 10 mA, synchronized signal output for 3D use |
Usage environment |
Operating temperature: 5 to 40°C*8, Operating humidity: 20 to 80 % (with no condensation) |
Storage temperature: –10 to 50°C, Storage humidity: 20 to 80 % (with no condensation) |
Operating altitude: 0 to 3,650 m (1,700 to 3,650 m: Set [FAN MODE] to [HIGH ALTITUDE]) |
Power Supply |
100 to 240 V AC, 50/60 Hz |
Power Consumption |
Boost mode |
655 W (200 to 240 V) |
Normal mode |
615 W (200 to 240 V) |
ECO mode |
350 W (200 to 240 V) |
Standby |
0.28W (200 to 240 V), Network Standby 0.8W |
Dimensions (W × H × D) |
599 × 208 × 490 mm (Net dimensions, not including protruding parts) |
Weight |
24.1 kg (not including lens) |
