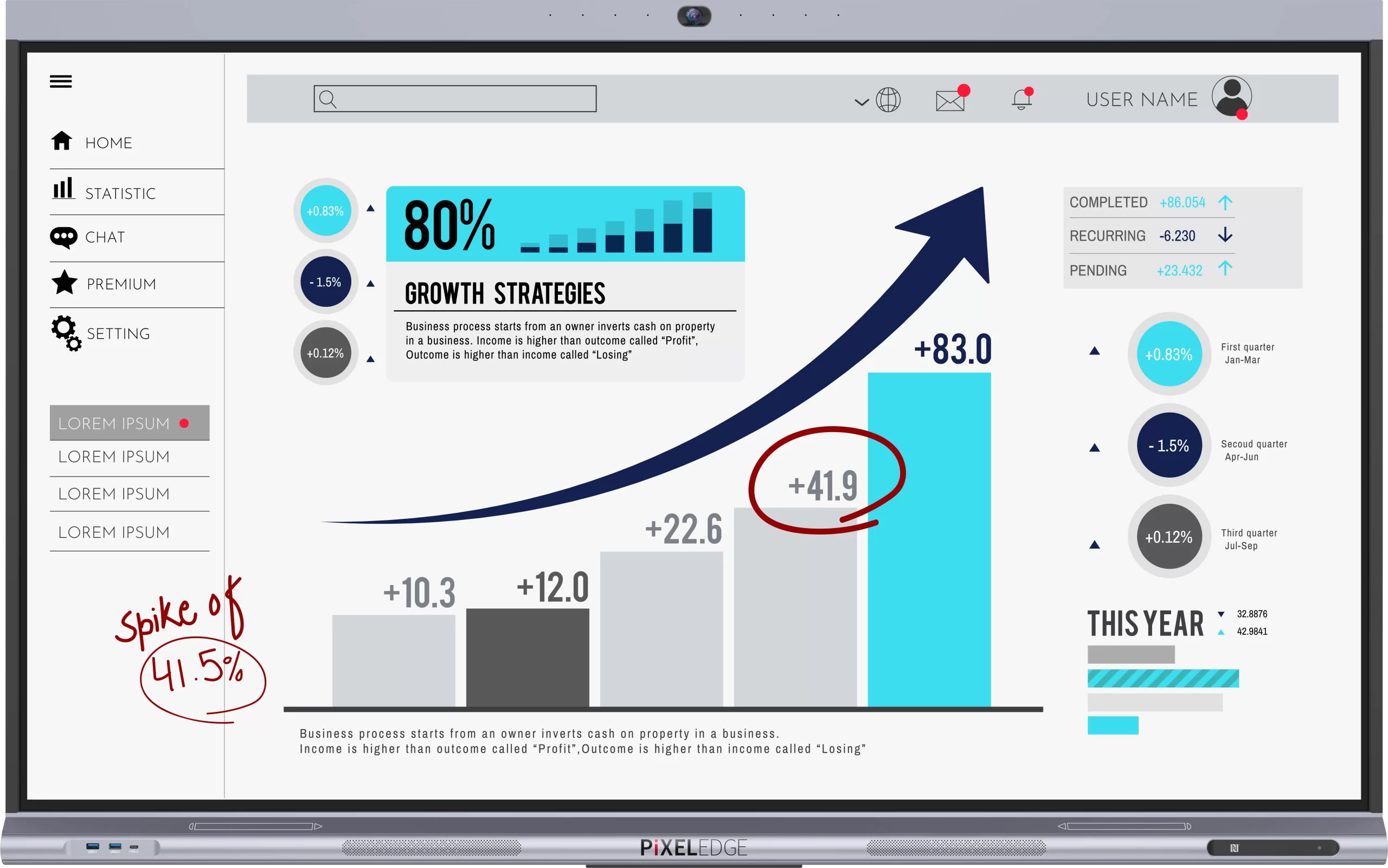

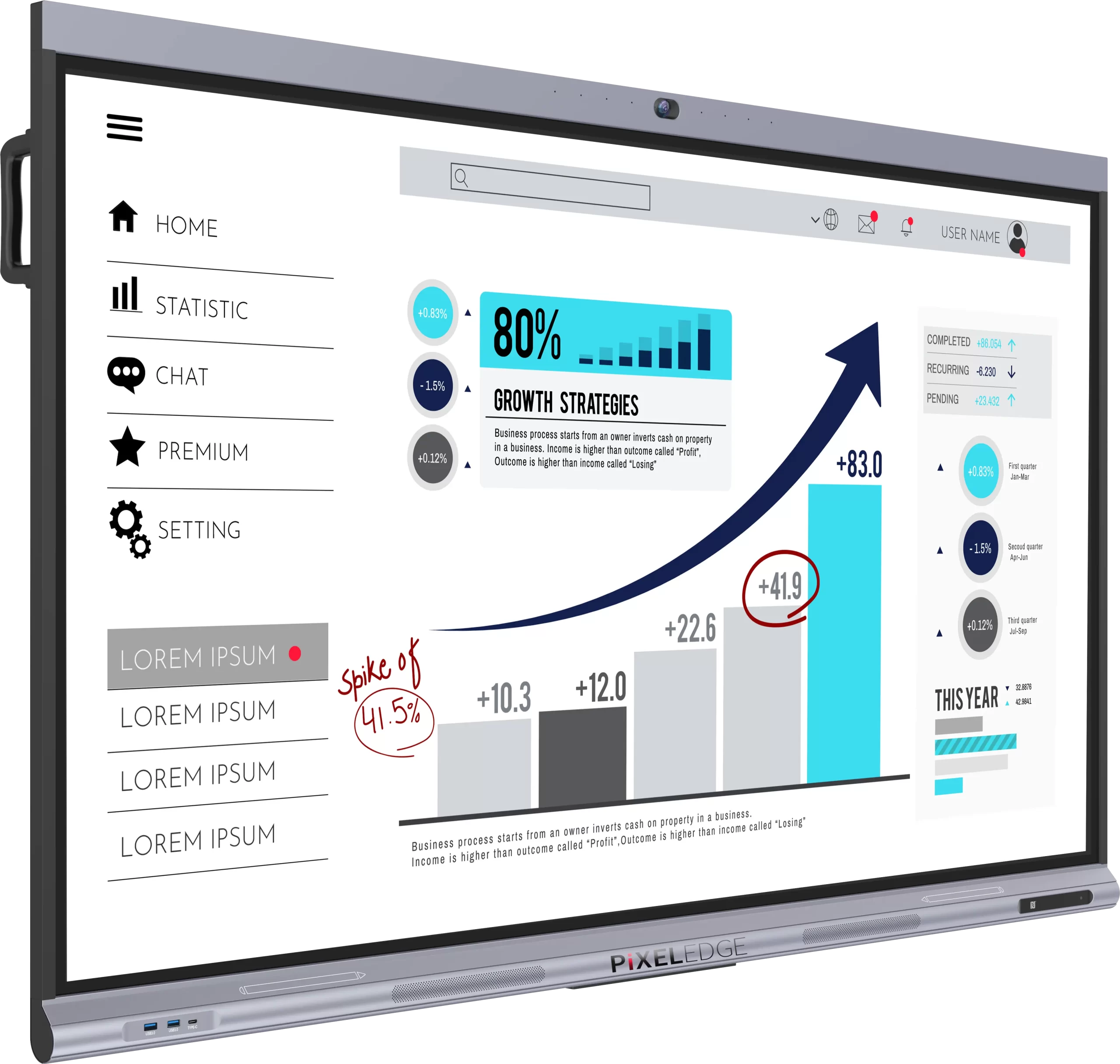

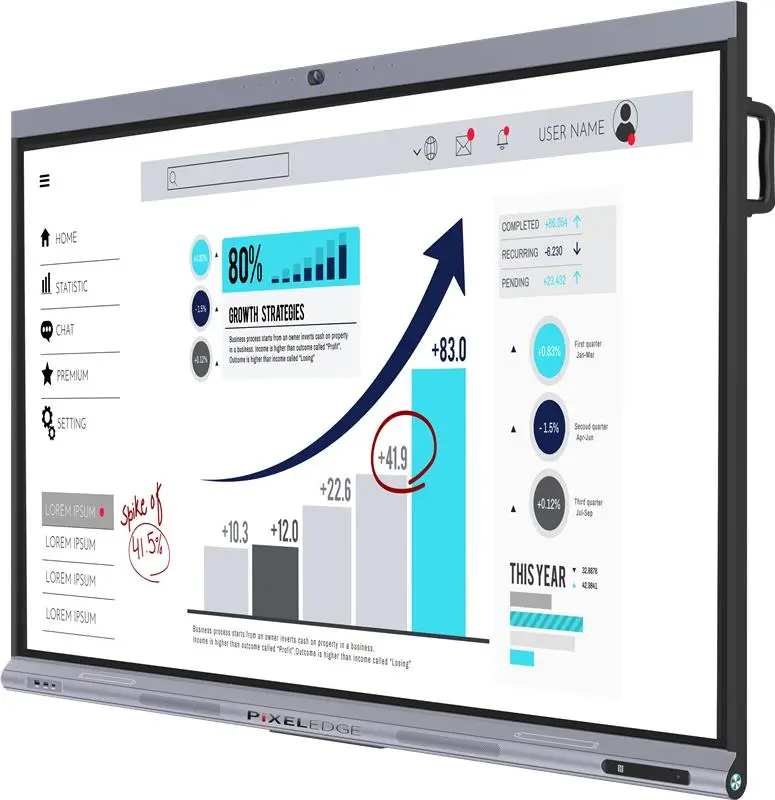

PE-SB751 Interactive Smartboard

PE-SB751

PE-SB751: Interactive Smartboard for Education and Business

When you need a bigger surface for learning and collaboration, the PixeEdge PE-SB751 is the perfect choice. This interactive smartboard has the scale to bring bigger groups together, whether in schools, colleges, or corporate offices.

Best Way to Educate

The PE-SB751 redefines interactive whiteboards for education. It provides educators the freedom to move from explaining theories to demonstrating real-life applications instantly. It lets students directly interact with content to solve problems, contribute ideas, and explore lessons thoroughly. As a smartboard for teaching, the PE-SB751 builds an environment where every student becomes part of the lesson or discussion.

Simplifying Professional Interaction

This board shines as a corporate interactive display for professionals. Large display helps bigger teams to view and visualize strategies, solve problems, and track progress collectively. It encourages collaboration by allowing multiple people to interact at once. It makes PE-SB751 ideal for workshops, strategy meetings, or client pitches.

Creating Memorable Experiences

PE-SB-751’s strength lies in how it improves communication. It lets educators design sessions that capture attention for longer, while businesses can share and collaborate seamlessly.

The board became a partner in storytelling to make lessons and meetings more impactful. The PE-SB751 delivers a wider canvas to create, collaborate, and communicate without limits.

Pixel Edge Models PE-SB751
INSTALLATION LANDSCAPE
DISPLAY Display Size 75-inch-class (189.3cm) TFT LCD
Max. Resolution 3840 x 2160 Pixels
Max. Display Colours (approx.) 1.07B (8bit + FRC)
Pixel Pitch (H x V) in mm 0.4296(H) x 0.4296(V)
Max. Brightness 400 cd/m²
Contrast Ratio 1,200 : 1 (typical)
Viewing Angle (H/V) 178°(H) / 178°(V)
Active Screen Area (W x H) in mm 1649.664 x 927.936
Response Time 8ms (typical)
Backlight D-LED
TOUCH SPECIFICATIONS Touch Technology IR (infrared blocking detection method)
Multi Touch 40 Points
Surface Protection 3.2mm Toughened Glass
Response Time ≤ 10ms
Touch Pen Passive Pen
SYSTEM CPU 4 Cortex A73 (quad core) with Max 2.2GHz + 4 Cortex A53 (quad core) with 2.0GHz
GPU MaliG52 MP8
Memory & Internal Storage 4 GB RAM, 32 GB ROM
OS Android
Power Requirements AC 100 V – 240 V, 50/60 Hz
Power consumption without OPS 300 w
OPS Power DC 19V/5A
INTERFACE Input (*3)(*4) Front Public USB (front) 3.0×2, Type C (front)
Rear HDMI x2, DP x1, Type C, VGA x1, LAN x2, Audio x1, MIC x1, Touch-USB x3, RS232 x1, USB 2.0 x1, USB3.0 x2
Input (*3)(*4) Rear Rear : S/PDIF x1, Audio x1
OPS Optional
WIFI Operating Frequency 2.4GHz/5GHz
Wi-Fi Standard 802.11 a/b/g/n/ac/BT
CAMERA Pixels 8MP
Lens Angle of View (FOV) Diagonal 103°
Array Size MJPEG : 3840*2160 [30fps], 1920*1080 [30fps]
MIC ARRAY Array Quantity & Pickup Area 8-mic & 6m (angle: 45°-135°)
Echo Cancellation (AEC) & Automatic Gain (AGC) Yes
Output Signal USB Output
Speaker Output 15 W + 15 W / 8Ω
ENVIRONMENTAL
CONDITIONS
Operating Temperature (*2) 0 °C to + 40 °C
Operating Humidity 20% to 80% RH (non-condensing)
PACKAGING Dimensions Package Size (W x D x H) 1716.5mm x 105.6mm x 1069.7mm
Weight (in kg) Net wt – 54.5kg / Gross wt – 63.5kg
Wall Mounting Holes (VESA) (4-M8 Screw Hole 800mmx400mm)
Main Accessories 1 Remote, 2 Stylus, 1 HDMI Cable, 1 Power Cable, 1 Touch USB Cable, Wallmount Kit, 1 User Manual, 1 Instruction Manual, 2 AAA Batteries
