| Product Information |
| Product Name |

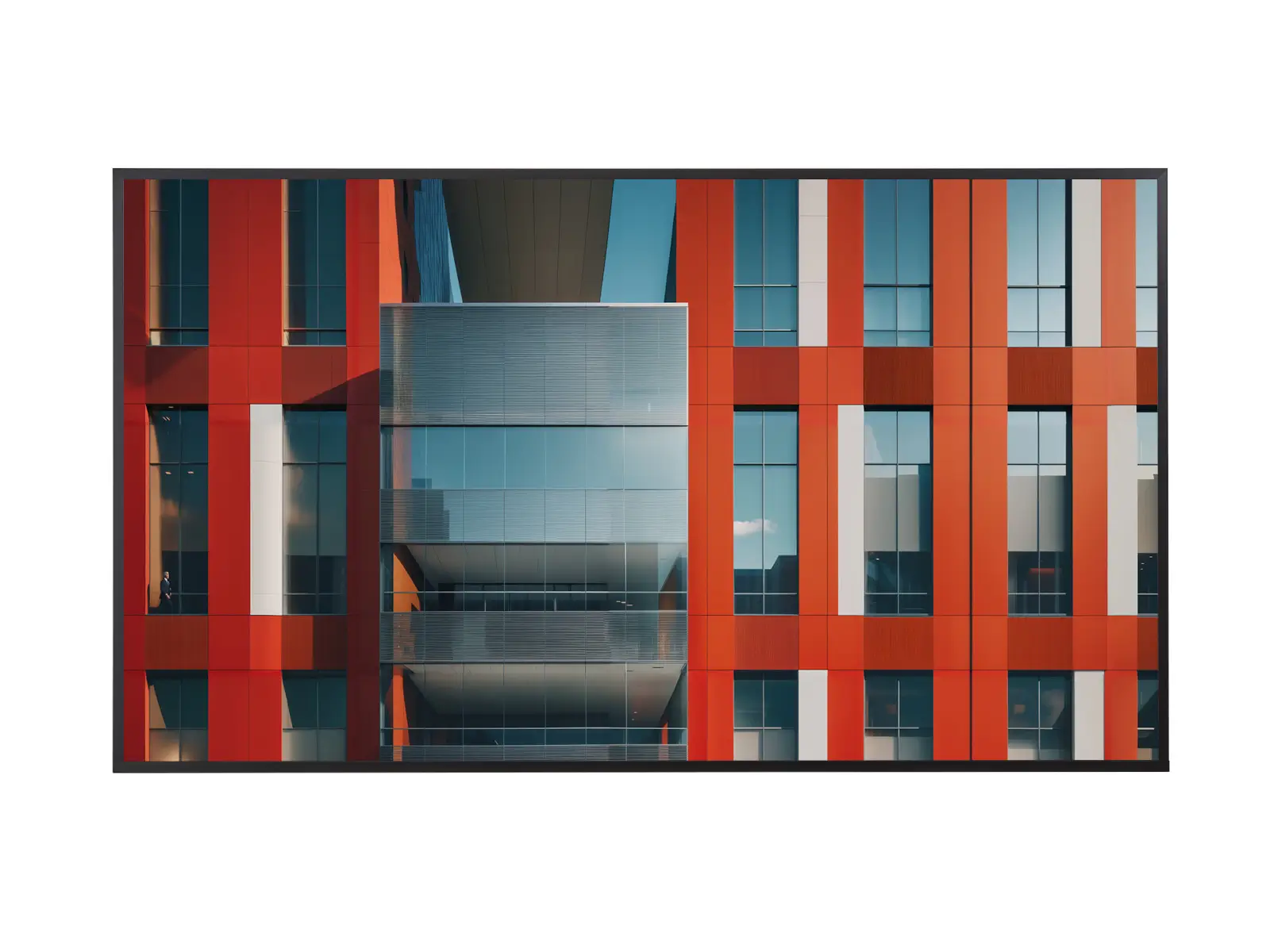

Sharp MultiSync® ME652 |
| Model |
PN-ME652 |
| Product Group |
LCD 65″ Message Essential Large Format Display |
| Display |
| Panel Technology |
IPS with Direct LED backlights |
| Screen Size [inch/cm] |
65 / 163.9 |
| Aspect Ratio |
16:9 |
| Brightness [cd/m²] |
450 |
| Contrast Ratio (default) |
1200:1 |
| Viewing Angle [°] |
178 horizontal / 178 vertical (typ. at contrast ratio 10:1) |
| Colour Depth [bn] |
1.073 (8bit + FRC) |
| HDR |
HDR10; HLG; PQ |
| Response Time (typ.)[ms] |
8 |
| Panel Refresh Rate [Hz] |
60 |
| Haze Level [%] |
Pro (25) |
| Supported Orientation |
Landscape; Portrait |
| Resolution |
| Native Resolution |
3840 x 2160 |
| Supported Resolutions |
1024 x 768;
1024 x 768;
1280 x 1024;
1280 x 1024;
1280 x 720;
1280 x 800;
1360 x 768;
1366 x 768;
1400 x 1050;
1440 x 900;
1600 x 1200;
1680 x 1050;
1920 x 1080;
1920 x 1200;
1920 x 2160;
3840 x 2160;
4096 x 2160;
640 x 480;
720 x 480;
720 x 576;
800 x 600 |
| Synchronisation Rate |
| Horizontal Frequency [kHz] |
15 – 135 |
| Vertical Frequency [Hz] |
23 – 76 |
| Connectivity |
| Input Video Digital |
1 x USB-C (with HDCP 1.3/2.2); 3 x HDMI (with HDCP) |
| Input Audio Digital |
1x USB-C; 3 x HDMI |
| Input Control |
LAN 100Mbit; remote control wire (3,5mm jack); RS232 |
| Input Data |
3 x USB 2.0 (Downstream) |
| Output Audio Analogue |
1 x 3,5 mm jack |
| Input Detect |
Custom; First; Last |
| Electrical |
| Power Consumption[W] |
140 shipping |
| Power Savings Mode [W] |
< 0.5; < 2 (Networked Standby) |
| Power Supply |
100-240 V AC; 50/60 Hz; internal |
| Environmental Conditions |
Operating Temperature
[°C] |
+0 to +40 |
| Operating Humidity [%] |
20 to 80 |
| Storage Humidity [%] |
10 to 90 |
Storage Temperature
[°C] |
-20 to 60 |
| Mechanical |
| Dimensions (W x H x D)[mm] |
1,463.3 x 838.2 x 68 |
| Weight [kg] |
23.9 |
| Bezel Width [mm] |
15.9 |
| VESA Mounting [mm] |
4 holes; 600 x 400 (FDMI); M8 |
| Ingress Protection |
IP5x (front); IP5x (back) |
Packaging Dimensions
(W x H x D) [mm] |
1,628 x 942 x 185 |
| Packaging Weight [kg] |
34.5 |
| Colour Bezel |
Pantone (Process Black M) |
| Material |
Metal |
| MediaPlayer |
Supported File Storage
/ File System |
FAT16 / FAT32 @ USB 2.0 |
Supported Video
Formats |
MKV (Mpeg1/2/3 Layer1/2/3, max res 4096×2160@60fps); MP4 (Mpeg1/2
Layer1/2/3, H.264, HEVC/H.265, max res 4096×2160@60fps) |
Supported Audio
Formats |
.mp3 max. Bit Rate 320 kbps |
| Embedded Computing |
| System Version |
Android 13 |
| System Memory |
4G RAM |
| Internal Storage |
32GB ROM |
| Built-in Applications |
File Manager; Web Browser |
| Available Options |
| Accessories |
Feet (ST-65M); Presence Sensor (KT-RC3); Soundbar (PN-ZCMS1); Speaker
(SP-RM3a); Trolley (PD04-Tipster Trolley); Wall mount (PDW T XL-2;
L20PNWALL90EU; PDW S 32-65L/P) |
| Regulatory |
| Safety and Ergonomics |
BSMI; CE; EMC Class B; Energy Star 8; FCC Class B; KC/KCC; PSB; RCM;
RoHS; VCCI |
| Pixel Failure Class |
ISO 9241-307, Class 1 |
| Resistance to Fire |
Metal backcover, plastic material certified acc. to UL94-5VB |
| Green Features |
| Energy Efficiency |
Energy consumption: 144 kWh/1000 h; Energy efficiency class: G; LED
backlight |
| Ecological Standards |
EnergyStar 8.0 |
| 3rd Party Certifications |
| Crestron |
Certified for Crestron CCV2 and XiO Cloud |
| Additional Features |
| Special Characteristics |
DICOM Simulation; HDMI ARC; Powered USB Port (15 W); Removable Logo |
| Audio |
Integrated Speakers (10 W + 10 W) |
| Shipping Content |
2x AAA batteries; Display; HDMI Cable; Power Cable; Remote Control;
Setup Manual |
| Operating Hours |
18/7 |
| External Control |
AMX NetLinx Support; ASCII Control Commands; Crestron Connected;
HDMI CEC; Scheduled Timer |
| Remote Management |
Automated Email Alerts; NEC NaViSet Administrator 2 |
| Security |
Disable HW Buttons; Disable IR Functionality |
